Machine processing

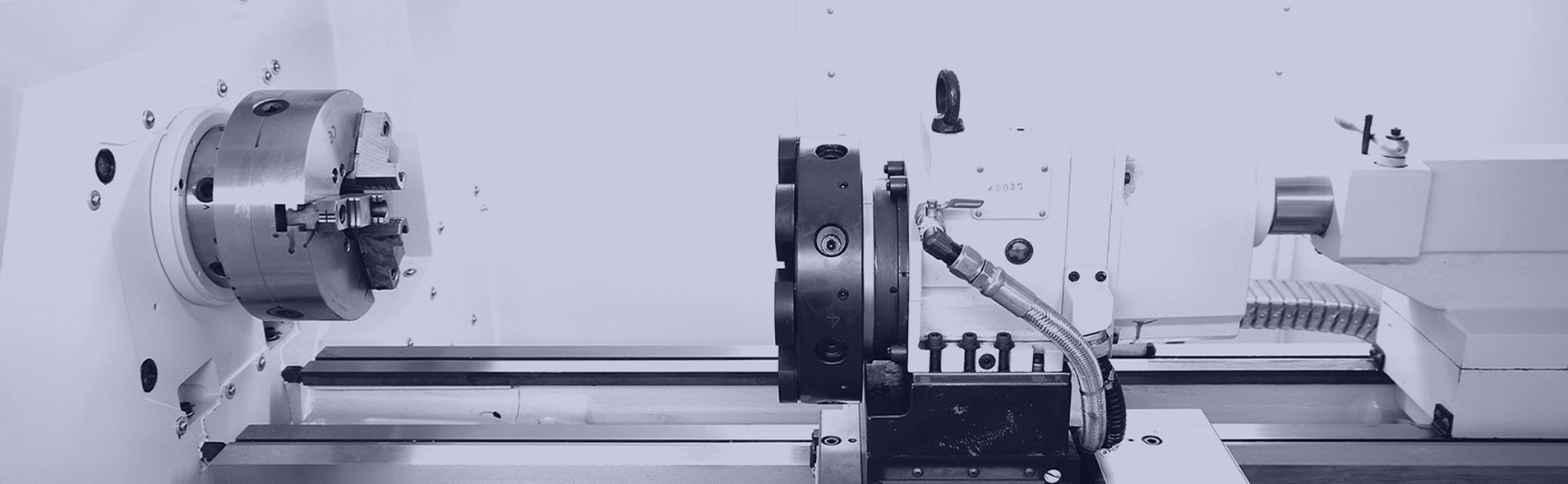

Turning is a machining process in which the cutting tool moves more or less linearly, while the workpiece rotates.
Turning can be done on the outside or inside of the cylinder (also known as drilling) to produce tubular components of various geometries.
Metal element d.o.o. offers a wide range of services and products.

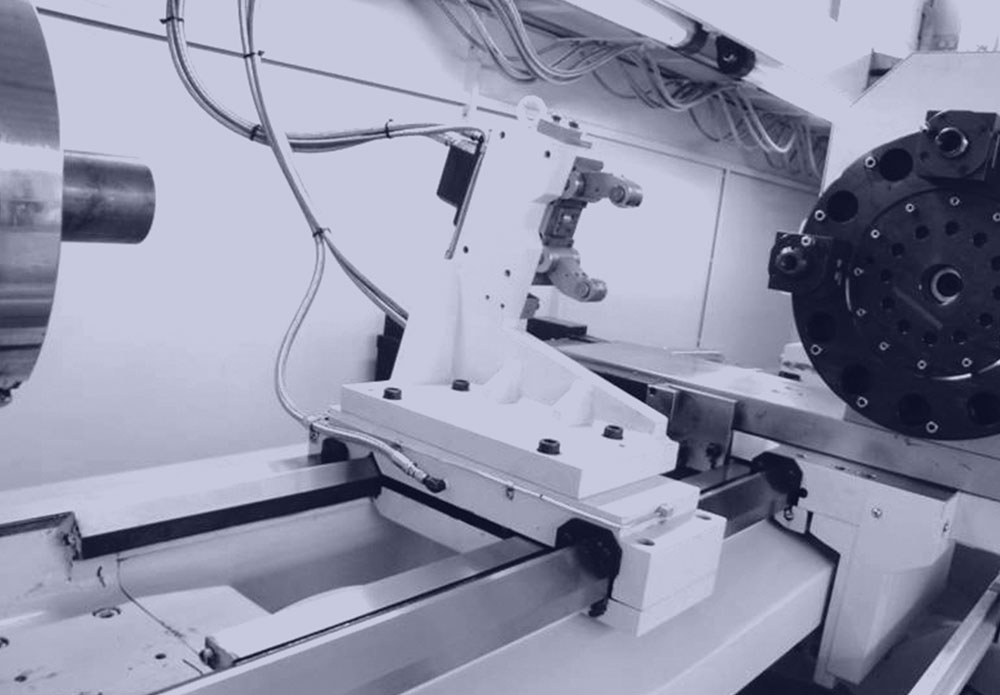

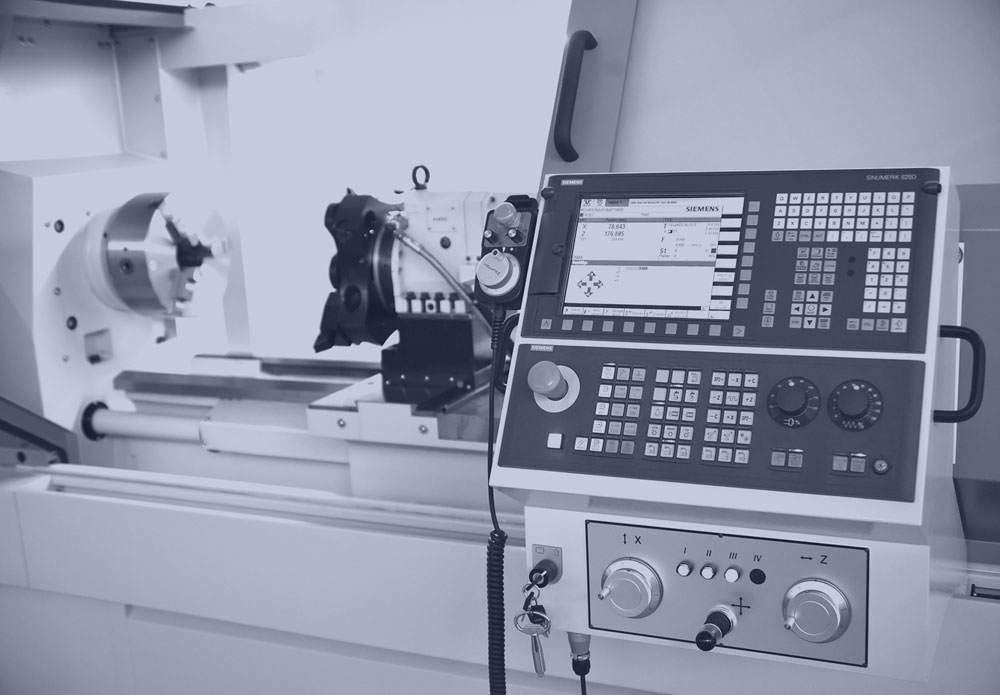

Wagner WDC 560
| Max. Turning Øabove sealevel. Bed, mm | 560 |
| Max. Turning Ø over Cross slide, mm | 390 |
| Max. Turning-Øin the bridge, mm | 810 |
| Max. distance betweencenters | 1000/1500/2000/3000 |
| Spindle nose, D "Camlock" size | 8 |
| Spindle bore, mm | 80 |
| Spindle speedrange | mit 3 autom. Stufen, min-1 20 - 2400 |
| Bed width, mm | 345 |
| Quill, mm | 180 |
| Tailstock quillcone | MK 5 |
| TailstockQuill-Ø, mm | 75 |
| Engine power AC FAGOR / SIEMENS: | 7,5(WDC 560 x 3000 11) / 9 |
| Rapid Z axis, mm/min: | 7000 |
| Rapid X axis, mm/min: | 5000 |
| Repeat accuracy, mm+/- | 0,005 / 300 |
| Positioning accuracy, mm +/- | 0,01 / 300 |

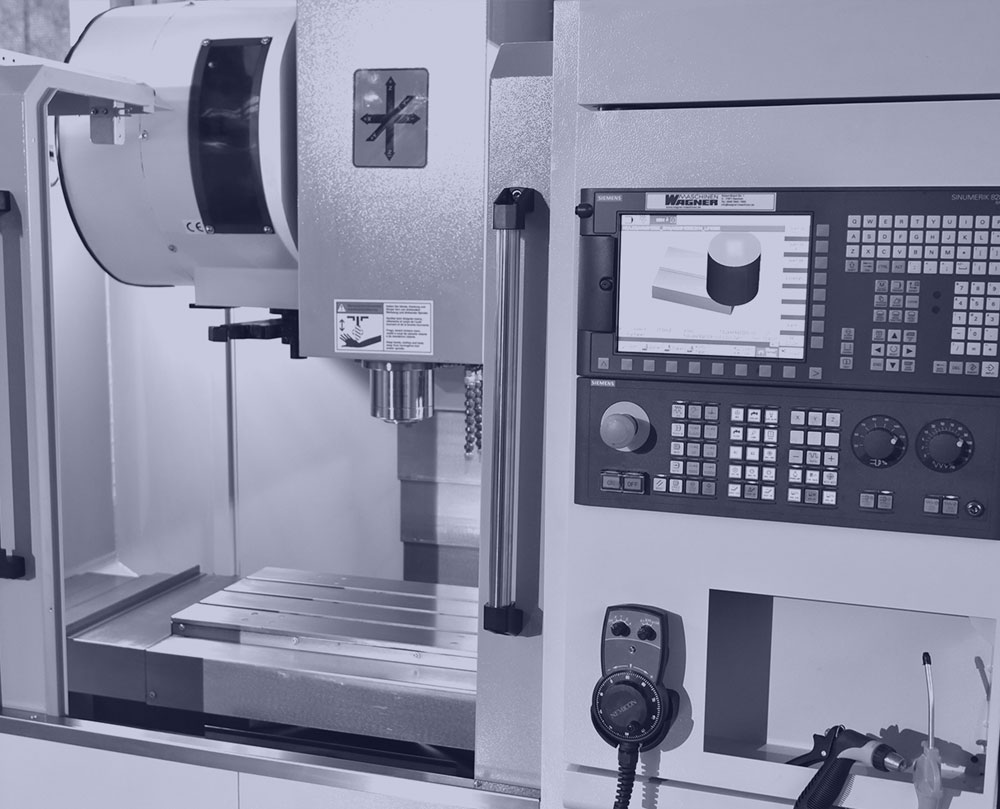

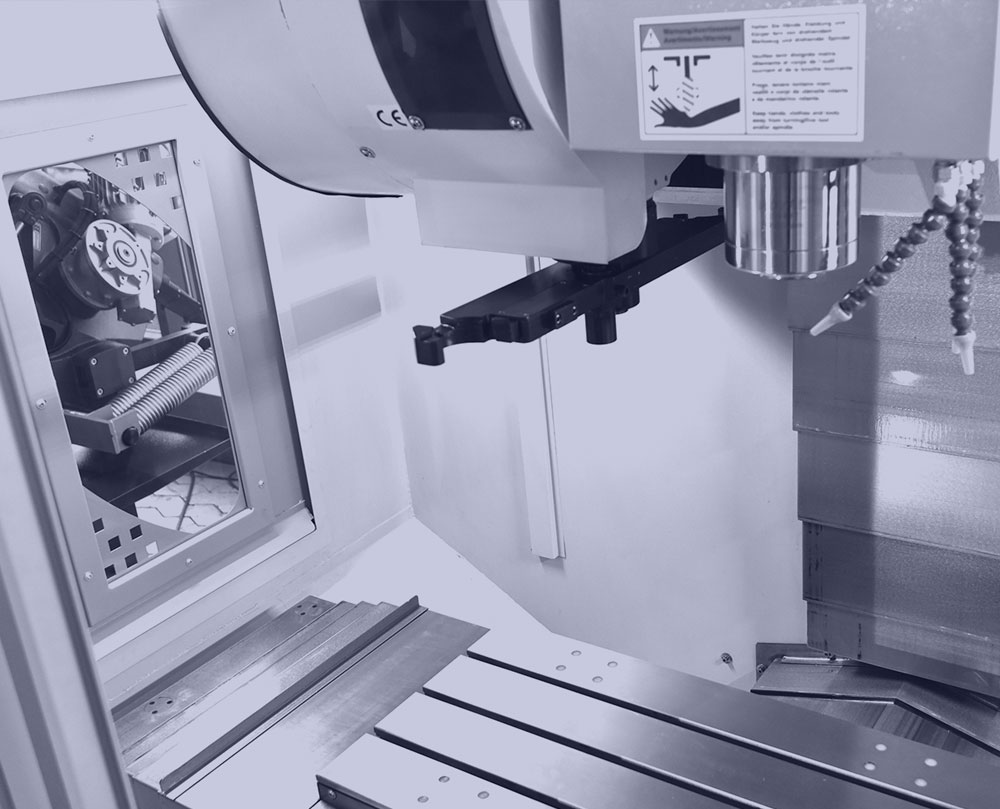

Wagner WMC 600R
| Clamping surface, mm | 800 x 400 |
| T - slots, mm | 3 x 14 |
| Table load, kg | 300 |
| Travel X / Y / Z, mm | 600 / 400/ 450 |
| Spindle nose - table, mm | 100 - 550 |
| Spindle center - column, mm | 450 |
| Spindle speed, stepless, rpm. |
SK 40: 80 - 10.000 |
| Number of magazine locations | 16 |
| Tool Ø, max., Mm | 89 |
| Tool weight, max., kg | 7 |
| Tool change time, sec. | 2 |
| Chip - to - chip, sec. | 7 |
| Feed range X / Y / Z, m/min. | 10.000 |
| Rapid traverse X / Y / Z, m / min. | 24.000 |
| Repeatability, mm | +/- 0,007 |
| Positioning accuracy, mm | +/- 0,010 |
| Cross guides | 2 |
| Dimensions (LxWxH), mm | 1900 x 1700 x 2240 |
| Machine weight, approx. Kg | 3500 |
